R. T. RUSSELL

BBC BASIC (Z80) Manual

ABS

A function giving the absolute value of its argument.

X = ABS(deficit)
length = ABS(X1-X2)

This function converts negative numbers into positive ones. It can be used to give the difference between two numbers without regard to the sign of the answer.

It is particularly useful when you want to know the difference between two values, but you don't know which is the larger. For instance, if X=6 and Y=10 then the following examples would give the same result.

difference = ABS(X-Y)
difference = ABS(Y-X)

You can use this function to check that a calculated answer is within certain limits of a specified value. For example, suppose you wanted to check that 'answer' was equal to 'ideal' plus or minus (up to) 0.5. One way would be:

IF answer>ideal-0.5 AND answer<ideal+0.5 THEN....

However, the following example would be a more elegant solution.

IF ABS(answer-ideal)<0.5 THEN....

Syntax

<n-var>=ABS(<numeric>)

Associated Keywords

SGN

ACS

A function giving the arc cosine of its argument in radians. The permitted range of the argument is -1 to +1.

If you know the cosine of the angle, this function will tell you the angle (in radians). Unfortunately, you cannot do this with complete certainty because two angles within the range +/- PI (+/- 180 degrees) can have the same cosine. This means that one cosine has two associated angles.

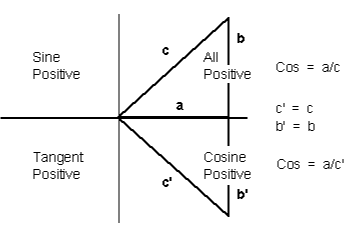

The following diagram illustrates the problem:

Within the four quadrants, there are two angles which have the same cosine, two with the same sine and two with the same tangent. When you are working back from the cosine, sine or tangent you don't know which of the two possible angles is correct.

By convention, ACS gives a result in the top two quadrants (0 to PI - 0 to 180 degrees) and ASN and ATN in the right-hand two quadrants (-PI/2 to +PI/2 - -90 to + 90 degrees).

In the example below, 'radian_angle' becomes equal to the angle (in radians) whose cosine is 'y'.

radian_angle=ACS(y)

You can convert the answer to degrees by using the DEG function (or multiplying by 180/PI).

degree_angle=DEG(ACS(y))

Syntax

<n-var>=ACS(<numeric>)

Associated Keywords

ASN, ATN, SIN, COS, TAN, RAD, DEG

ADVAL

This function returns information about the analogue to digital converter channels on the Games Adapter card (if fitted). The information returned depends upon the argument passed to ADVAL.

Not implemented in the generic CP/M version of BBC BASIC (Z80)

Syntax

<n-var>=ADVAL(<numeric>)

Associated Keywords

SOUND, INPUT, GET

AND

A.

The operation of integer bitwise logical AND between two items. The 2 operands are internally converted to four byte integers before the AND operation.

answer=num1 AND num2
char=byte AND &7F

IF (num AND &F0)

test=(count=3 AND total=5)

You can use AND as a logical operator or as a 'bit-by-bit' (bitwise) operator. The operands can be boolean (logical) or numeric.

In the following example program segment, AND is used as a bitwise operator to remove the most significant bit of a byte read from a file before writing it to another file. This is useful for converting some word-processor files into standard ASCII format.

210 byte=BGET#infile AND &7F
220 BPUT#outfile,byte

Unfortunately, BBC BASIC does not have true boolean variables; it uses numeric variables and assigns the value 0 for FALSE and -1 for TRUE. This can lead to confusion at times. (See NOT for more details.) In the example below, the operands are boolean (logical). In other words, the result of the tests (IF) A=2 and (IF) B=3 is either TRUE or FALSE. The result of this example will be TRUE if A=2 and B=3.

answer=(A=2 AND B=3)

The brackets are not necessary, they have been included to make the example easier to follow.

The second example is similar to the first, but in the more familiar surroundings of an IF statement.

IF A=2 AND B=3 THEN 110

answer= A=2 AND B=3(without brackets this time)IF answer THEN 110

The final example, uses the AND in a similar fashion to the numeric operators (+, -, etc).

A=X AND 11

Suppose X was -20, the AND operation would be:

11111111 11111111 11111111 11101100
00000000 00000000 00000000 00001011
00000000 00000000 00000000 00001000  = 8

Syntax

<n-var>=<numeric> AND <numeric>

Associated Keywords

EOR, OR, FALSE, TRUE, NOT

ASC

A function returning the ASCII character value of the first character of the argument string. If the string is null then -1 will be returned.

A computer only understands numbers. In order to deal with characters, each character is assigned a code number. For example (in the ASCII code table) the character 'A' is given the code number 65 (decimal). A part of the computer generates special electronic signals which cause the characters to be displayed on the screen. The signals generated vary according to the code number.

You could use this function to convert ASCII codes to some other coding scheme.

ascii_code=ASC("H") Result would be 72

X=ASC("HELLO") Result would be 72

name$="FRED"

ascii_code=ASC(name$) Result would be 70

X=ASC"e" Result would be 101

X=ASC(MID$(A$,position)) Result depends on A$ and position.

ASC is the complement of CHR$.

Syntax

<n-var>=ASC(<str>)

Associated Keywords

CHR$, STR$, VAL

ASN

A function giving the arc sine of its argument in radians. The permitted range of the argument is -1 to +1.

By convention, the result will be in the range -PI/2 to +PI/2 (-90 to +90 degrees).

If you know the sine of the angle, this function will tell you the angle (in radians). Unfortunately, you cannot do this with complete certainty because one sine has two associated angles. (See ACS for details.)

In the example below, 'radian_angle' becomes equal to the angle (in radians) whose sine is 'y'.

radian_angle=ASN(y)

You can convert the answer to degrees by using the DEG function. (The DEG function is equivalent to multiplying by 180/PI.) The example below is similar to the first one, but the angle is in degrees.

degree_angle=DEG(ASN(y))

Syntax

<n-var>=ASN(<numeric>)

Associated Keywords

ACS, ATN, SIN, COS, TAN, RAD, DEG

ATN

A function giving the arc tangent of its argument in radians. The permitted range of the argument is from - to + infinity.

By convention, the result will be in the range -PI/2 to +PI/2 (-90 to +90 degrees).

If you know the tangent of the angle, this function will tell you the angle (in radians).

As the magnitude of the argument (tangent) becomes very large (approaches + or - infinity) the accuracy diminishes.

In the example below, 'radian_angle' becomes equal to the angle (in radians) whose tangent is 'y'.

radian_angle=ATN(y)

You can convert the answer to degrees by using the DEG function. (The DEG function is equivalent to multiplying by 180/PI.) The example below is similar to the first one, but the angle is in degrees.

degree_angle=DEG(ATN(y))

Syntax

<n-var>=ATN(<numeric>)

Associated Keywords

ACS, ASN, SIN, COS, TAN, RAD, DEG

AUTO

AU.

A command allowing the user to enter lines without first typing in the number of the line. The line numbers are preceded by the usual prompt (>).

You can use this command to tell the computer to type the line numbers automatically for you when you are entering a program (or part of a program).

If AUTO is used on its own, the line numbers will start at 10 and go up by 10 for each line. However, you can specify the start number and the value by which the line numbers will increment. The step size can be in the range 1 to 255.

You cannot use the AUTO command within a program or a multi-statement command line.

You can leave the AUTO mode by pressing the escape key.

AUTO start_number,step_size

AUTO offers line numbers 10, 20, 30 ...

AUTO 100 starts at 100 with step 10

AUTO 100,1 starts at 100 with step 1

AUTO ,2 starts at 10 with step 2

A hyphen is an acceptable alternative to a comma.

Syntax

AUTO [<n-const> [,<n-const>]]

Associated Keywords

None

BGET#

B.#

A function which gets a byte from the file whose file handle is its argument. The file pointer is incremented after the byte has been read.

E=BGET#n
aux=BGET#3

You must normally have opened a file using OPENOUT, OPENIN or OPENUP before you use this statement. (See these keywords and the BBC BASIC (Z80) Disk Files section for details.) BGET# may alternatively be used with the AUX device (usually a serial port) which has the 'permanently open' handle = 3.

You can use BGET# to read single bytes from a disk file. This enables you to read back small integers which have been 'packed' into fewer than 5 bytes (see BPUT#). It is also very useful if you need to perform some conversion operation on a file. Each byte read is numeric, but you can use CHR$(BGET#n) to convert it to a string.

The input file in the example below is a text file produced by a word-processor.

Words to be underlined are 'bracketed' with ^S. The program produces an output file suitable for a printer which expects such words to be bracketed by ^Y. You could, of course, perform several such translations in one program.

 10 REM Open i/p and o/p files. End if error.
 20 infile=OPENIN "WSFILE.DOC"
 30 IF infile=0 THEN END
 40 outfile=OPENOUT "BROTH.DOC"
 50 IF outfile=0 THEN END
 60 :
 70 REM Process file, converting ^S to ^Y
 80 REPEAT
 90   temp=BGET#infile :REM Read byte
100    IF temp=&13 THEN temp=&19 :REM Convert ^S
110    BPUT#outfile,temp :REM Write byte
120 UNTIL temp=&1A :REM ^Z
130 CLOSE#0 :REM Close all files
140 END

To make the program more useful, it could ask for the names of the input and output files at 'run time':

 10INPUT "Enter name of INPUT file " infile$
 20 INPUT "Enter name of OUTPUT file " outfile$
 30 REM Open i/p and o/p files. End if error.
 40 infile=OPENIN(infile$)
 50 IF infile=0 THEN END
 60 outfile=OPENOUT(outfile$)
 70 IF outfile=0 THEN END
 80 :
 90 REM Process file, converting ^S to ^Y
100 REPEAT
110    temp=BGET#infile :REM Read byte
120    IF temp=&13 THEN temp=&19 :REM Convert ^S
130    BPUT#outfile,temp :REM Write byte
140 UNTIL temp=&1A :REM ^Z
150 CLOSE#0 :REM Close all files
160 END

Syntax

<n-var>=BGET#<numeric>

Associated Keywords

OPENIN, OPENUP, OPENOUT, CLOSE#, PRINT#, INPUT#, BGET#, EXT#, GET$#, PTR#, EOF#

BPUT#

BP.#

A statement which writes a byte or string to the data file whose channel number is the first argument. If the second argument is numeric, its least significant byte is written to the file; the file pointer is incremented after the byte has been written.

BPUT#E,32
BPUT#staff_file,A/256

Before you use this statement you must normally have opened a file for output using OPENOUT or OPENUP (see these keywords and the Disk files section for details).

You can use this statement to write single bytes to a disk file. The number that is sent to the file is in the range 0 to 255. Real numbers are converted internally to integers and the top three bytes are 'masked off'. Each byte written is numeric, but you can use ASC(character$) to convert (the first character of) 'character$' to a number.

The example below is a program segment that 'packs' an integer number between 0 and 65535 (&FFFF) into two bytes, least significant byte first. The file must have already been opened for output and the channel number stored in 'fnum'. The integer variable number% contains the value to be written to the file.

BPUT#fnum,number% MOD 256
BPUT#fnum,number% DIV 256

(BBC BASIC version 5 or later only)
Alternatively BPUT# can be used to write a character string to a file. The difference between PRINT#file,string$ and BPUT#file,string$ is that PRINT# appends a carriage-return character (CHR$13) whereas BPUT# appends a line-feed character (CHR$10). Adding a terminating semicolon (;) causes the contents of the string to be written to the file with nothing appended.

BPUT#chn,A$
BPUT#N,"a string";

Syntax

BPUT#<numeric>,<numeric>
BPUT#<numeric>,<string>[;]

Associated Keywords

OPENIN, OPENUP, OPENOUT, CLOSE#, PRINT#, INPUT#, BGET#, GET$#, EXT#, PTR#, EOF#, GET$#

BY

Used in conjunction with DRAW, FILL, MOVE or PLOT, indicates that the supplied X and Y coordinates are relative (offsets from the current point) rather than absolute.

BY is also used with the GET$#channel function to specify the number of bytes to be read from the file.

Syntax

DRAW BY <numeric>,<numeric>
FILL BY <numeric>,<numeric>
MOVE BY <numeric>,<numeric>
PLOT BY <numeric>,<numeric>

Associated Keywords

DRAW, FILL, GET$, MOVE, PLOT

CALL

CA.

A statement to call a machine code subroutine.

CALL Muldiv,A,B,C,D
CALL &FFE3
CALL 12340,A$,M,J$

The processor's A, B, C, D, E, F, H and L registers are initialised to the least significant words of A%, B%, C%, D%, E%, F%, H% and L% respectively (see also USR).

Parameter Table

CALL sets up a table in RAM containing details of the parameters. The IX register is set to the address of this parameter table.

Variables included in the parameter list need not have been declared before the CALL statement.

The parameter types are:

Code No Parameter Type

0: byte (8 bits) eg ?A%

4: word (32 bits) eg !A% or A%

5: real (40 bits) eg A

128: fixed string eg $A%

129: movable string eg A$

Code No	Parameter Type
0:	byte (8 bits)	eg ?A%
4:	word (32 bits)	eg !A% or A%
5:	real (40 bits)	eg A
128:	fixed string	eg $A%
129:	movable string	eg A$

Number of parameters 1 byte (at IX)

Parameter type 1 byte (at IX+1)

Parameter address 2 bytes (at IX+2 IX+3 LSB first)

Parameter type )repeated as often as necessary.

Parameter address )

Except in the case of a movable string (normal string variable), the parameter address given is the absolute address at which the item is stored. In the case of movable strings (type 129), it is the address of a parameter block containing the current length, the maximum length and the start address of the string, in that order

Parameter Formats

Integer variables are stored in twos complement format with their least significant byte first.

Fixed strings are stored as the characters of the string followed by a carriage return (&0D).

Floating point variables are stored in binary floating point format with their least significant byte first. The fifth byte is the exponent. The mantissa is stored as a binary fraction in sign and magnitude format. Bit 7 of the most significant byte is the sign bit and, for the purposes of calculating the magnitude of the number, this bit is assumed to be set to one. The exponent is stored as a positive integer in excess 127 format. (To find the exponent subtract 127 from the value in the fifth byte.)

If the exponent of a floating point number is zero, the number is stored in integer format in the mantissa. If the exponent is not zero, then the variable has a floating point value. Thus, an integer can be stored in two different formats in a real variable. For example, 5 can be stored as

& 00 00 00 05 00 Integer 5

& 20 00 00 00 82 (.5+.125) * 2^3 = 5

(the &20 becomes &A0 because the MSB is always assumed)

In the case of a movable string (normal string variable), the parameter address points to the 'string descriptor'. This descriptor gives the current length of the string, the number of bytes allocated to the string (the maximum length of the string) and the address of the start of the string (LSB first).

Syntax

CALL <numeric>{,<n-var>|<s-var>}

Associated Keywords

USR

CASE

(BBC BASIC version 5 or later only)

A statement which results in different actions depending on the value of a numeric or string variable. The value is compared with each of the alternatives given; if it matches then the appropriate statements are executed. If the value does not match any of the alternatives, the statements following the OTHERWISE statement (if any) are executed. CASE ... ENDCASE clauses can be nested.

WHEN and ENDCASE must be the first thing on the program line and OF must be the last thing on the line (it cannot even be followed by a REMark).

CASE toss% OF
  WHEN 0 : coin$ = "tails"
  WHEN 1 : coin$ = "heads"
  OTHERWISE coin$ = "cheat"
ENDCASE

CASE direction$ OF
  WHEN "left","LEFT" :
  PRINT "turn left"
  WHEN "right","RIGHT" :
  PRINT "Turn right"
  OTHERWISE
  PRINT "Straight on"
ENDCASE

Syntax

CASE <numeric>|<string> OF
  WHEN <numeric>|<string>{,<numeric>|<string>} : {<stmt>}
  {<stmt>}
  WHEN <numeric>|<string>{,<numeric>|<string>} : {<stmt>}
  {<stmt>}
  OTHERWISE {<stmt>}
  {<stmt>}
ENDCASE

Associated Keywords

ENDCASE, IF, OF, ON, OTHERWISE, WHEN

CHAIN

CH.

A statement which loads and runs the program whose name is specified in the argument.

CHAIN "GAME1"
CHAIN A$

The program file must be in tokenised format.

All but the static variables @% to Z% are CLEARed.

CHAIN sets ON ERROR OFF before chaining the specified program.

RUN may be used as an alternative to CHAIN.

You can use CHAIN (or RUN) to link program modules together. This allows you to write modular programs which would, if written in one piece, be too large for the memory available.

Passing data between CHAINed programs can be a bit of a problem because COMMON variables cannot be declared and all but the static variables are cleared by CHAIN.

If you wish to pass large amounts of data between CHAINed programs, you should use a data file. However, if the amount of data to be passed is small and you do not wish to suffer the time penalty of using a data file, you can pass data to the CHAINed program by using the indirection operators to store them at known addresses. The safest way to do this is to move HIMEM down and store common data at the top of memory.

The following sample program segment moves HIMEM down 100 bytes and stores the input and output file names in the memory above HIMEM. There is, of course, still plenty of room for other data in this area.

100 HIMEM=HIMEM-100
110 $HIMEM=in_file$
120 $(HIMEM+13)=out_file$
130 CHAIN "NEXTPROG"

Syntax

CHAIN <str>

Associated Keywords

LOAD, RUN, SAVE

CHR$

A function which returns a string of length 1 containing the ASCII character specified by the least significant byte of the numeric argument.

A$=CHR$(72)
B$=CHR$(12)
C$=CHR$(A/200)

CHR$ generates an ASCII character (symbol, letter, number character, control character, etc) from the number given. The number specifies the position of the generated character in the ASCII table (See Annex A). For example:

char$=CHR$(65)

will set char$ equal to the character 'A'. You can use CHR$ to send a special character to the terminal or printer. (Generally, VDU is better for sending characters to the screen.) For example,

CHR$(7)

will generate the ASCII character ^G. So,

PRINT "ERROR"+CHR$(7)

will print the message 'ERROR' and sound the PC's 'bell'.

CHR$ is the complement of ASC.

Syntax

<s-var>=CHR$(<numeric>)

Associated Keywords

ASC, STR$, VAL, VDU

CIRCLE

(BBC BASIC version 5 or later only, not implemented in the generic CP/M edition)

A statement which draws a circle or disc (filled circle) in all screen modes except MODE 7. CIRCLE is followed by the X and Y coordinates of the centre of the circle and the radius. To draw a filled (solid) circle rather than an outline circle, use CIRCLE FILL.

The circle or disc is drawn in the current graphics foreground colour. This colour can be changed using the GCOL statement.

CIRCLE x,y,r is equivalent to MOVE x,y : PLOT 145,r,0
CIRCLE FILL x,y,r is equivalent to MOVE x,y : PLOT 153,r,0

CIRCLE 200,300,40
CIRCLE FILL 300,400,100

Syntax

CIRCLE [FILL] <numeric>,<numeric>,<numeric>

Associated Keywords

ELLIPSE, FILL, GCOL, MOVE, PLOT

CLEAR

CL.

A statement which clears all the dynamically declared variables, including strings. CLEAR does not affect the static variables.

The CLEAR command tells BBC BASIC (Z80) to 'forget' about ALL the dynamic variables used so far. This includes strings and arrays, but the static variables (@% to Z%) are not altered.

You can use the indirection operators to store integers and strings at known addresses and these will not be affected by CLEAR. However, you will need to 'protect' the area of memory used. The easiest way to do this is to move HIMEM down. See CHAIN for an example.

Syntax

CLEAR

Associated Keywords

None

CLOSE#

CLO.#

A statement used to close a data file. CLOSE #0 will close all data files.

CLOSE#file_num
CLOSE#0

You use CLOSE# to tell BBC BASIC (Z80) that you have completely finished with a data file for this phase of the program. Any data still in the file buffer is written to the file before the file is closed.

You can open and close a file several times within one program, but it is generally considered 'better form' not to close a file until you have finally finished with it. However, if you wish to CLEAR the variables, it is simpler if you close the data files first.

You should also close data files before chaining another program. CHAIN does not automatically close data files, but it does clear the variables in which the file handles were stored. You can still access the open file if you have used one of the static variables (A% to Z%) to store the file handle. Alternatively, you could reserve an area of memory (by moving HIMEM down for example) and use the byte indirection operator to store the file handle. (See the keyword CHAIN for more details.)

END or 'dropping off' the end of a program will also close all open data files. However, STOP does not close data files.

Syntax

CLOSE#<numeric>

Associated Keywords

OPENIN, OPENUP, OPENOUT, PRINT#, INPUT#, BPUT#, BGET#, GET$#, EXT#, PTR#, EOF#

CLG

A statement which clears the graphics area of the screen and sets it to the currently selected graphics background colour,

Not implemented in the generic CP/M version of BBC BASIC (Z80)

Syntax

CLG

Associated Keywords

CLS, GCOL

CLS

A statement which clears the text area of the screen and sets it to the currently selected text background colour. The text cursor is moved to the 'home' position (0,0) at the top left-hand corner of the text area.

Syntax

CLS

Associated Keywords

CLG, COLOUR

COLOUR (COLOR)

C.

Sets the text foreground and background colours. If the parameter is less than 128, the colour of the text is set. If the number is 128 or greater, the colour of the background is set.

Not implemented in the generic CP/M version of BBC BASIC (Z80)

Syntax

COLOUR<numeric>

Associated Keywords

VDU, GCOL, MODE

COS

A function giving the cosine of its radian argument.

X=COS(angle)

This function returns the cosine of an angle. The angle must be expressed in radians, not degrees.

Whilst the computer is quite happy dealing with angles expressed in radians, you may prefer to express angles in degrees. You can use the RAD function to convert an angle from degrees to radians.

The example below sets Y to the cosine of the angle 'degree_angle' expressed in degrees.

Y=COS(RAD(degree_angle))

Syntax

<n-var>=COS(<numeric>)

Associated Keywords

SIN, TAN, ACS, ASN, ATN, DEG, RAD

COUNT

COU.

A function returning the number of characters sent to the output stream (VDU or printer) since the last new line.

char_count=COUNT

Characters with an ASCII value of less than 13 (carriage return/new-line/enter) have no effect on COUNT.

Because control characters above 13 are included in COUNT, you cannot reliably use it to find the position of the cursor on the screen. If you need to know the cursor's horizontal position use the POS function.

Count is NOT set to zero if the output stream is changed using the *OPT command.

The example below prints strings from the string array 'words$'. The strings are printed on the same line until the line length exceeds 65. When the line length is in excess of 65, a new-line is printed.

 90 ....
100 PRINT
110 FOR i=1 TO 1000
120 PRINT words$(i);
130 IF COUNT>65 THEN PRINT
140 NEXT
150 ....

Syntax

<n-var>=COUNT

Associated Keywords

POS

DATA

D.

A program object which must precede all lists of data for use by the READ statement.

As for INPUT, string values may be quoted or unquoted. However, quotes need to be used if the string contains commas or leading spaces.

Numeric values may include calculation so long as there are no keywords.

Data items in the list should be separated by a comma.

DATA 10.7,2,HELLO," THIS IS A COMMA,",1/3,PRINT
DATA " This is a string with leading spaces."

You can use DATA in conjunction with READ to include data in your program which you may need to change from time to time, but which does not need to be different every time you run the program.

The following example program segment reads through a list of names looking for the name in 'name$'. If the name is found, the name and age are printed. If not, an error message is printed.

100 DATA FRED,17,BILL,21,ALLISON,21,NOEL,32
110 DATA JOAN,26,JOHN,19,WENDY,35,ZZZZ,0
120 REPEAT
130 READ list$,age
140 IF list$=name$ THEN PRINT name$,age
150 UNTIL list$=name$ OR list$="ZZZZ"
160 IF list$="ZZZZ" PRINT "Name not in list"

Syntax

DATA <s-const>|<n-const>{,<s-const>|<n-const>}

Associated Keywords

READ, RESTORE

DEF

A program object which must precede declaration of a user defined function (FN) or procedure (PROC). DEF must be used at the start of a program line.

If DEF is encountered during execution, the rest of the line is ignored. As a consequence, single line definitions can be put anywhere in the program.

Multi-line definitions must not be executed. The safest place to put multi-line definitions is at the end of the main program after the END statement.

There is no speed advantage to be gained by placing function or procedure definitions at the start of the program.

DEF FNMEAN ....
DEF PROCJIM ....

In order to make the text more readable the function or procedure name may start with an underline.

DEF FN_mean ....
DEF PROC_Jim$ ....

Function and procedure names may end with a '$'. This is not compulsory for functions which return strings.

A procedure definition is terminated by the statement ENDPROC.

A function definition is terminated by a statement which starts with an equals (=) sign. The function returns the value of the expression to the right of the equals sign.

For examples of function and procedure declarations, see FN and PROC. For a general explanation of functions and procedures, refer to the Procedures and Functions sub-section in the General Information section.

Syntax

DEF PROC<name>[([RETURN]<s-var>|<n-var>{,[RETURN]<s-var>|<n-var>})]
DEF FN<name>[([RETURN]<s-var>|<n-var>{,[RETURN]<s-var>|<n-var>})]

Associated Keywords

ENDPROC, FN, PROC, RETURN

DEG

A function which converts radians to degrees.

degree_angle=DEG(PI/2)
X=DEG(ATN(1))

You can use this function to convert an angle expressed in radians to degrees. One radian is approximately 57 degrees (actually 180/PI). PI/2 radians is 90 degrees and PI radians is 180 degrees.

Using DEG is equivalent to multiplying the radian value by 180/PI, but the result is calculated internally to a greater accuracy.

See ACS, ASN and ATN for further examples of the use of DEG.

Syntax

<n-var>=DEG(<numeric>)

Associated Keywords

RAD, SIN, COS, TAN, ACS, ASN, ATN, PI

DELETE

DEL.

A command which deletes a group of lines from the program. Both start and end lines of the group will be deleted.

You can use DELETE to remove a number of lines from your program. To delete a single line, just type the line number followed by <Enter>.

The example below deletes all the lines between line 10 and 15 (inclusive).

DELETE 10,15

To delete up to a line from the beginning of the program, use 0 as the first line number. The following example deletes all the lines up to (and including) line 120.

DELETE 0,120

To delete from a given line to the end of the program, use 65535 as the last line number. To delete from line 2310 to the end of the program, type:

DELETE 2310,65535

A hyphen is an acceptable alternative to a comma.

Syntax

DELETE <n-const>,<n-const>

Associated Keywords

EDIT, LIST, OLD, NEW

DIM

DIM can be used as a statement or as a function. When used as a statement, DIM has two different forms: the first declares an array and the second reserves an area of memory for special applications. When used as a function, DIM returns the number of dimensions in an array or the size of a particular dimension.

Dimensioning arrays

The DIM statement is used to declare arrays. Arrays must be pre-declared before use and once declared their dimensions cannot be changed (with the exception of LOCAL arrays). Arrays may be integer numeric, byte numeric, real numeric or string and they may be multi-dimensional. However, you cannot mix integers, bytes, reals and/or strings in the same array.

DIM A(2),A&(2,3),A$(2,3,4),A%(3,4,5,6)

All elements in the array are initialised to zero (for numeric arrays) or to empty strings (for string arrays).

The subscript base is 0, so DIM X(12) defines an array of 13 elements whose subscript value can be from 0 to 12 inclusive.

Arrays are like lists or tables. A list of names is a single dimension array. In other words, there is only one column - the names. Its single dimension in a DIM statement would be the maximum number of names you expected in the table less 1.

If you wanted to describe the position of the pieces on a chess board you could use a two dimensional array. The two dimensions would represent the row (numbered 0 to 7) and the column (also numbered 0 to 7). The contents of each 'cell' of the array would indicate the presence (if any) of a piece and its value.

DIM chess_board(7,7)

Such an array would only represent the chess board at one moment of play. If you wanted to represent a series of board positions you would need to use a three dimensional array. The third dimension would represent the 'move number'. Each move would use about 320 bytes of memory, so you could record 40 moves in about 12.5k bytes.

DIM chess_game(7,7,40)

The 'DIM space' error will occur if you attempt to declare an array for which there is insufficient memory.

Reserving an area of memory

The DIM statement can be used to reserve an area of memory which the interpreter will not then use. The variable specified in the DIM statement is set to the start address of this memory area. This reserved area can then be used by the indirection operators, assembly language code, etc.

The example below reserves 68 bytes of memory from the heap and sets a% equal to the address of the first byte. Thus a%?0 to a%?67 are free for use by the program (68 bytes in all):

DIM a% 67

The amount of memory reserved is one byte greater than the value specified. DIM p% −1 is a special case; it reserves zero bytes of memory. This is of more use than you might think, since it tells you the limit of the dynamic variable allocation (the heap) so far. Thus,

DIM p% -1
PRINT HIMEM-p%

is the equivalent of PRINT HIMEM-END (or PRINT FREE(0) in some other dialects of BASIC).

Memory reserved in this way causes irreversible loss of heap space, therefore you must be very careful not to reserve the memory multiple times when once will suffice. This is a particular danger when DIM is used within a function or procedure.

Reserving a temporary area of memory

(BBC BASIC version 5 or later only)

If you want to reserve a temporary block of memory for use within a function or procedure you can use use the following construct:

DIM a% LOCAL 67

This reserves 68 bytes from the stack rather than from the heap, and the memory is automatically freed on exit from the function or procedure.

Note that the variable (a% in this case) is not automatically made LOCAL to the function or procedure. In most cases you will want to do that as well:

LOCAL a%
DIM a% LOCAL 67

The amount of memory reserved is one byte greater than the value specified. DIM p% LOCAL −1 is a special case; it reserves zero bytes of memory. This is of more use than you might think, since it tells you the current size of the stack:

DIM p% LOCAL -1
PRINT HIMEM-p%

DIM as a function

(BBC BASIC version 5 or later only)

You can use DIM as a function to discover the number of dimensions in an array or the size of an array dimension. The function DIM(array()) returns the number of dimensions in the array (note the use of opening and closing brackets with nothing in between). The function DIM (array(),n) returns the size of dimension 'n', where n is in the range 1 to the number of dimensions.

If an array is declared as follows:

DIM cuboid(4,5,7)

the function DIM(cuboid()) will return the value 3, the function DIM(cuboid(),1) will return the value 4, the function DIM(cuboid(),2) will return the value 5 and the function DIM(cuboid(),3) will return the value 7.

Discovering the size of an array is of particular interest when a whole array is passed as a parameter to a function or procedure. For example, if you write a general-purpose function to calculate the geometric mean of the values in a numeric array, the function must know the total number of elements in the array.

Syntax

DIM <n-var>|<s-var>(<numeric>{,<numeric>})
DIM <name>{<member>{,<member>}}
DIM <n-var> [LOCAL] <numeric>
<n-var> = DIM(<array()>[,<numeric>])

Associated Keywords

CLEAR, HIMEM, LOCAL, LOMEM

DIV

A binary operation giving the integer quotient of two items. The result is always an integer.

X=A DIV B
y=(top+bottom+1) DIV 2

You can use this function to give the 'whole number' part of the answer to a division. For example,

21 DIV 4

would give 5 (with a 'remainder' of 1).

Whilst it is possible to use DIV with real numbers, it is really intended for use with integers. If you do use real numbers, BBC BASIC (Z80) converts them to integers by truncation before DIViding them.

Syntax

<n-var>=<numeric> DIV <numeric>

Associated Keywords

MOD

DRAW

A statement which draws a line on the screen in the graphics modes. The statement is followed by the X and Y coordinates of the end of the line.

Not implemented in the generic CP/M version of BBC BASIC (Z80)

Syntax

DRAW [BY] <numeric>,<numeric>

Associated Keywords

MODE, PLOT, MOVE, CLG, VDU, GCOL

EDIT

E.

A command to edit or concatenate and edit the specified program line(s). The specified lines (including their line numbers) are listed as a single line. By changing only the line number, you can also use EDIT to duplicate a line.

EDIT 230
EDIT 200,230

The codes shown are the default codes as supplied; they may be changed by editing the BBCDIST.MAC patch program:

Ctrl/E Move the cursor up one line

Ctrl/X Move the cursor down one line

Ctrl/S Move the cursor left one character

Ctrl/D Move the cursor right one character

Ctrl/A Move the cursor to the start of the line

Ctrl/F Move the cursor to the end of the line

Del Backspace and delete

Ctrl/G Delete the character at the cursor

Ctrl/U Clear line to the left of the cursor

Ctrl/T Clear the line to the right of the cursor

Ctrl/V Insert a space at the cursor position

Enter Enter the line and exit the edit mode

Esc Abort and leave the line unchanged

To abort the single line editor and leave the line unchanged, press <Esc>.

You can use the EDIT command to edit and join (concatenate) program lines. When you use it to join lines, remember to delete any unwanted ones. EDIT on its own will start at the beginning of the program and concatenate as many lines as it can. This process will stop when the concatenated line length exceeds 255.

Syntax

EDIT <l-num>
EDIT <l-num>,<l-num>

Associated Keywords

DELETE, LIST, OLD, NEW

ELLIPSE

(BBC BASIC version 5 or later only, not implemented in the generic CP/M edition)

A statement which draws an outline ellipse or filled ellipse, in all screen modes except MODE 7. ELLIPSE is followed by the X and Y coordinates of the centre of the ellipse, the horizontal radius and the vertical radius, in that order. To draw a filled ellipse use ELLIPSE FILL.

Note: In BBC BASIC (Z80) this statement can draw only axis-aligned ellipses.

The ellipse is drawn in the current graphics foreground colour. This colour can be changed using the GCOL statement.

ELLIPSE x,y,a,b is equivalent to MOVE x,y : PLOT 0,a,0 : PLOT 193,0,b
ELLIPSE FILL x,y,a,b is equivalent to MOVE x,y : PLOT 0,a,0 : PLOT 201,0,b

ELLIPSE 200,300,40,50
ELLIPSE FILL 300,400,100,80

Syntax

ELLIPSE [FILL] <numeric>,<numeric>,<numeric>,<numeric>

Associated Keywords

CIRCLE, FILL, GCOL, MOVE, PLOT

ELSE

EL.

A statement delimiter which provides an alternative course of action in IF...THEN, ON...GOSUB, ON...GOTO and ON...PROC statements.

In an IF statement, if the conditional expression evaluates to zero, the statements after ELSE will be executed. This makes the following work:

IF A=B THEN B=C ELSE B=D
IF A=B THEN B=C:PRINT"WWW" ELSE B=D:PRINT"QQQ"
IF A=B THEN B=C ELSE IF A=C THEN...............

In a multi statement line containing more than one IF, the statement(s) after the ELSE delimiter will be actioned if ANY of the tests fail. For instance, the example below would print the error message 'er$' if 'x' did not equal 3 OR if 'a' did not equal 'b'.

IF x=3 THEN IF a=b THEN PRINT a$ ELSE PRINT er$

If you want to 'nest' the tests, you should use a multi-line IF ... ENDIF statement. The following example would print "Bad" ONLY if x was equal to 3 AND 'a' was not equal to 'b'.

IF x=3 THEN
  IF a=b THEN PRINT a$ ELSE PRINT "Bad"
ENDIF

ELSE can be used to indicate an alternative course of action in a multi-line IF ... THEN ... ENDIF statement (BBC BASIC version 5 or later only):

IF x=3 THEN
  PRINT "x is 3"
ELSE
  PRINT "x is not 3"
ENDIF

In this case ELSE must be the first thing on the line. You can cascade multiple IF ... ENDIF statements to test a number of different alternatives:

IF x=3 THEN
  PRINT "x is 3"
ELSE IF x=4 THEN
    PRINT "x is 4"
  ELSE
    PRINT "x is neither 3 nor 4"
  ENDIF
ENDIF

but in this situation a CASE statement would be a better choice.

You can use ELSE with ON...GOSUB, ON...GOTO and ON...PROC statements to prevent an out of range control variable causing an 'ON range' error.

ON action GOTO 100, 200, 300 ELSE PRINT "Error"
ON number GOSUB 100,200,300 ELSE PRINT "Error"
ON value PROCa,PROCb,PROCc ELSE PRINT "Error"

Syntax

IF <t-cond> [THEN <stmt>{:<stmt>}] [ELSE <stmt>{:<stmt>}]
ELSE [<stmt>]
ON <n-var> GOTO <l-num>{,<l-num>} ELSE <stmt>
ON <n-var> GOSUB <l-num>{,<l-num>} ELSE <stmt>
ON <n-var> PROC<name>{,PROC<name>} ELSE <stmt>

Associated Keywords:

IF, THEN, ON, ENDIF

END

A statement causing the interpreter to return to immediate mode. There can be any number (>=0) of END statements anywhere in a program. END closes all open data files.

END tells BBC BASIC that it has reached the end of the program. You don't have to use END, just 'running out of program' will have the same effect, but it's a bit messy.

You should use END to stop BBC BASIC 'falling into' any procedure or function definitions at the end of your program.

(BBC BASIC version 5 or later only)
END can also be used as a function. It returns the address of the first byte above BASIC's dynamic variable area (the heap). These two statements are equivalent:

e% = END
DIM e% -1

Syntax

END
<n-var> = END

Associated Keywords

QUIT, STOP, CLOSE#

ENDCASE

(BBC BASIC version 5 or later only)

A keyword which terminates a CASE...ENDCASE clause. ENDCASE must be the first item on the program line.

CASE die% OF
  WHEN 1,2,3 : bet$ = "lose"
  WHEN 4,5,6 : bet$ = "win"
  OTHERWISE bet$ = "cheat"
ENDCASE

Syntax

ENDCASE

Associated Keywords

CASE, OF, OTHERWISE, WHEN

ENDIF

(BBC BASIC version 5 or later only)

A keyword which terminates a multi-line IF clause. ENDIF must be the first thing on the program line.

Syntax

ENDIF

Associated Keywords

ELSE, IF, THEN

ENDPROC

A statement denoting the end of a procedure.

All local variables and the dummy arguments are restored at ENDPROC and the program returns to the statement after the calling statement.

Syntax

ENDPROC

Associated Keywords

DEF, FN, PROC, LOCAL

ENDWHILE

(BBC BASIC version 5 or later only)

A keyword which terminates a WHILE... ENDWHILE clause. If the ENDWHILE statement is executed, BBC BASIC jumps to the matching WHILE statement. If the WHILE condition is not met, control is transferred to the statement after the matching ENDWHILE statement.

 WHILE LEFT$(A$,1) = " " A$ = MID$(A$,2) : ENDWHILE

Syntax

ENDWHILE

Associated Keywords

REPEAT, UNTIL, WHILE

ENVELOPE

A statement which is used, in conjunction with the SOUND statement, to control the pitch of a sound whilst it is playing.

Not implemented in the generic CP/M version of BBC BASIC (Z80)

Syntax

ENVELOPE <numeric>, <numeric>, <numeric>, <numeric>, <numeric>, <numeric>, <numeric>, <numeric>, <numeric>, <numeric>, <numeric>, <numeric>, <numeric>, <numeric>

Associated Keywords

SOUND

CONTENTS

CONTINUE

`ascii_code=ASC("H")`	Result would be 72
`X=ASC("HELLO")`	Result would be 72
`name$="FRED"`
`ascii_code=ASC(name$)`	Result would be 70
`X=ASC"e"`	Result would be 101
`X=ASC(MID$(A$,position))`	Result depends on A$ and position.

`AUTO`	offers line numbers 10, 20, 30 ...
`AUTO 100`	starts at 100 with step 10
`AUTO 100,1`	starts at 100 with step 1
`AUTO ,2`	starts at 10 with step 2

Number of parameters	1 byte (at IX)

Parameter type	1 byte (at IX+1)
Parameter address	2 bytes (at IX+2 IX+3 LSB first)

Parameter type	)repeated as often as necessary.
Parameter address	)

Ctrl/E	Move the cursor up one line
Ctrl/X	Move the cursor down one line
Ctrl/S	Move the cursor left one character
Ctrl/D	Move the cursor right one character
Ctrl/A	Move the cursor to the start of the line
Ctrl/F	Move the cursor to the end of the line
Del	Backspace and delete
Ctrl/G	Delete the character at the cursor
Ctrl/U	Clear line to the left of the cursor
Ctrl/T	Clear the line to the right of the cursor
Ctrl/V	Insert a space at the cursor position
Enter	Enter the line and exit the edit mode
Esc	Abort and leave the line unchanged
